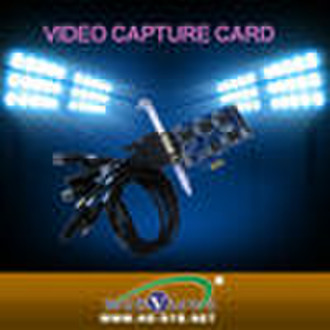

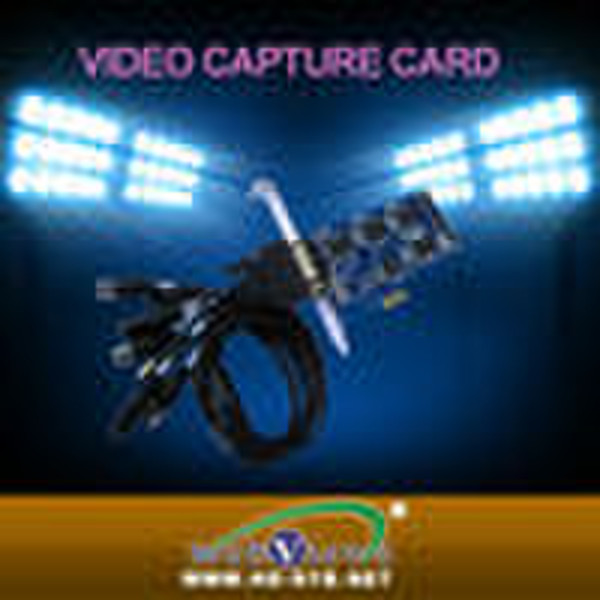

IPTV encoder
Vivia Hou
Contact person
Basic Information
IPTV encoder (1)PCI-E Support (2)4-channel simultaneous acquisition: WMV, ASF, RM, MPEG-4/2/1, 3GP, etc.Support (3)Live Media Encoder software and third-party software support.4-way video and audio signals simultaneously collected and Live.support (4)Video Input: 4XComposite (BNC)Audio Input: 4X3.5mm Stereo SVC 404E streaming capture card (with NowStream Live software) ModelSVC 404E streaming capture card (with NowStream Live software)Control HostPCI-E 1.0A3.3V 250MBVideo StandardMPEG-4/H.264/Wmv/MPEG-1(VCD)/MPEG-2(DVD)Audio StandardMPEG-1 Layer-3 /WMA9Video Bit-rate28Kbps—6MbpsAudio Bit-rate20Kbps—192KbpsAudio Sampling Frequency44.1 KHz, 48KHzVideo Input ConnectorComposite(BNC)Audio Input Connector3.5MM Unbalanced Analog AudioVideo Input ScopeVp-p = 1.0 VAudio Input ScopeVp-p = 2.0 VFrame RatePAL:25 ,NTSC: 30Video PreviewUncompressed DMA VGA PreviewCompressing Power Consumption<=3.8WPreview Power Consumption<=2.7WVideo SizePALNTSCFD1 720x576720x480Half D1 352x576352X4802/3 D1 480X480480X480Cif 352X288352X240Qcif 176X144176X112VGA 640x480640x480QVGA 320x240320x240Operation SystemWindows2000/WindowsXP/ Windows2003
Delivery terms and packaging
Packaging Detail: 330mm*210mm*80mm Delivery Detail: According to your needs(Normally 20days )
Port: EXW
Payment term
Telegraphic transfer
MoneyGram
Western Union
-
Payment Methods
We accept:
